COVERED LINE WIRE-ALUMINUM CONDUCTOR

1. Applications

Covered Line Wire is used primarily for 600V overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.

2. Construction

Conductors are aluminum alloy 1350-H19, 6201-T81, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HDPE) or cross linked polyethylene (XLPE).

3. Standards

ASTM B-230, B-232 and B-399

ICEA S-61-402 and S-66-524

4. Note

The code words as given apply to conventional polyethylene line wire.

Available in 500 ft coils or long lengths on reels. The data is approximate and subject to normal manufacturing tolerances.

For 6201 aluminum conductors diameter equivalent to ACSR construction or 1350 aluminum equivalent.

Ampacity ratings based on 75℃ conductor temperature; 25℃ ambient temperature elevation sea level; Emissvity 0.91 coefficient of absorption 0.95; Wind speed 2ft./sec. in sun.

To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.

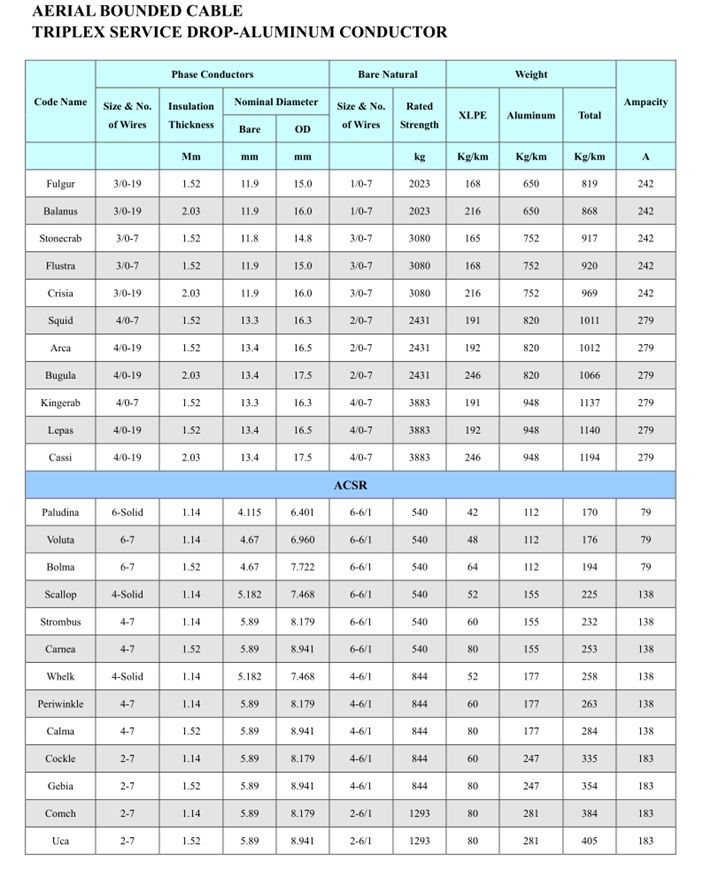

AERIAL BOUNDED CABLE

DUPLEX SERVICE DROP-ALUMINUM CONDUCTOR

1. Application

To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting, For service at 600

volt or lower at a conductor temperature of 75℃ maximum.

2. Construction

Concentric strand or compressed 1350-H19 conductor, polyethylene or cross linked polyethylene Insulation, concentric

strand AAC, ACSR, or 6201 alloy neutral messenger.

3. Standards

ASTM B-230, B-231, B-232 and B-399

ICEA S-76-474

4. Note

Designated sizes are ACSR 6/1 diameter equivalent receptivity per ASTM-B-399 for 6201.

Conductor temperature of 75℃ ambient temperature of 40℃ emissvity 0.9; 2ft./sec. wind in sun.

Packaging: Available in 500ft coils and in long lengths on reels.

The data is approximate and subject to normal manufacturing tolerances.

To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.
