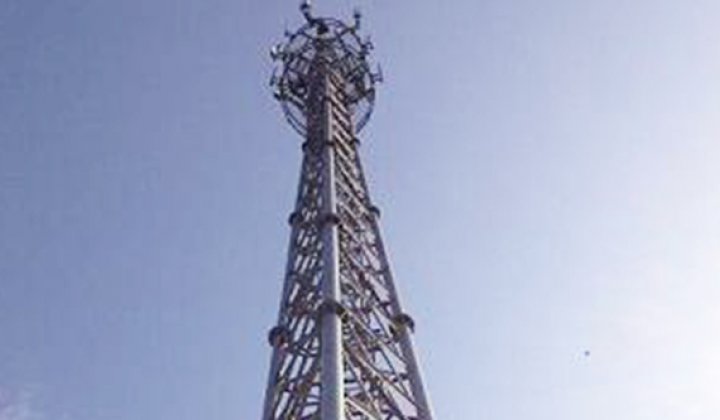

Tri-tubular telecom tower
Tri-tubular telecom tower refer to thee legs tubular or pipe telecom tower. These towers are made by three pipes being main legs, and bracing by pipe or angle steel.

MEGATRO provide Tri-tubular telecom tower mainly for our overseas client. Since 2004, MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of telecom tower. Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of DAO-POWER, PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.

Our attractive and multi-functional tri-tubular telecom towers are facing immense demand from every corner of globe for their technical, scientific and compact design specifications. We offer cost effective range of development and installation service regarding as an additional installation service.

MEGATRO microwave tower product description as follow:
1. Material: Comply with client requirements or as follow
Steel grades
Tower legs: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q2138B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard

If any special requirement, we can design and discuss with client.

2. Design: As per client and harmony with environment
3. Life time: 20-30 years or longer
4. Height: 5M to 200M or as per client design
5. Platform: According to design
6. Payment: L/C or T/T
7. Annual production capacity: 40000 Tons/year
8. Delivery:  One month or based on the customer's needs
9. Other details:
Working &Resting Platform Quantity: 1-3 PCS
sectional or panel Antenna: 3-18 PCS
Microwave Dish: 3-18 PCS
Spare parts: All necessary parts for installation and connection
MEGATRO provide Microwave Telecommunication Towers design with below requirements

10. Design Requirements and Basic of Design
MEGATRO TOWERS will guarantee the overall safety of the tower. MEGATRO TOWERS will submit design calculation report for member design of tower and overall structural stability of the structure, which is signed by a charted structural Engineer.
MEGATRO will supply the skeleton to scale, showing the assembly of the structures, the antenna mounting levels, other detail drawings etc.
The calculation method to be adopted for tower design will be decided by MEGATRO TOWERS with the consent of the client.
All materials will comply with British Standard (hereinafter called BS), Japanese Industrial Standard (hereinafter called JIS) or equivalent standards. The permissible stress of the materials will comply with BS, standard by Architectural Institute of Japan (hereinafter call AIJ) or equivalent. The standards adopted for all materials will be stated separately.

General Design Criteria
Mast will be designed based on GB, BS 8100, TIA/EIA-222-G-2006, IS 802 & IS875 or equivalent international standards.
The wind loading on the tower and antennas mounted on it will withstand a ground level wind velocity of 140 Km/h and survival speed of 180 Km/h including with height in accordance with latest BSI CP3: Chapter V: Part 2: British Standard (BS)
Antenna that will be considered when it calculates wind areas will be Six GSM antennas, Two each 600 mm diameter microwave dishes & one 1.2m Ø Microwave plus all the feeders for GSM and MW antennas.
Allowance will be given to the effective windage area of the following:
Feeder runway
Feeders
Platforms and guard rails
Ladder and ladder guards
MEGATRO submit the complete data showing the drag factor from various angles of wind on the antenna offered.

MEGATRO is one of the few manufactures who assemble a face of Tri-tubular telecom tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all Tri-tubular telecom towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' Tri-tubular telecom tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.

Other information:
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Minimum order: 1 set
we also provide lightning rod, cable tray, tower earthing kits, obstruction light and other accessories if client need.
