MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in telecommunications systems.
Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:
lFull Turn-Key provider including site acquisition, engineering services, manufacturing,   field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership
lSpecialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure
lSingle source from Design to System Integration
lTop quality, ISO 9001 registered
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.

MEGATRO mainly design all kinds of towers and posts for:
a.Telecoms
b.Power transmission
c.TV and Radio Broadcast
d.Roads and City Development

Our complete selection of towers includes:
a.Self-supporting
b.Monopoles
c.Guyed towers
d.Custom-designed radar towers
e.Broadcast towers
f.Power transmission

MEGATRO also designs and manufactures tower related products including:
a.Fall protection
b.Antenna brackets
c.Other accessories if needed by clients

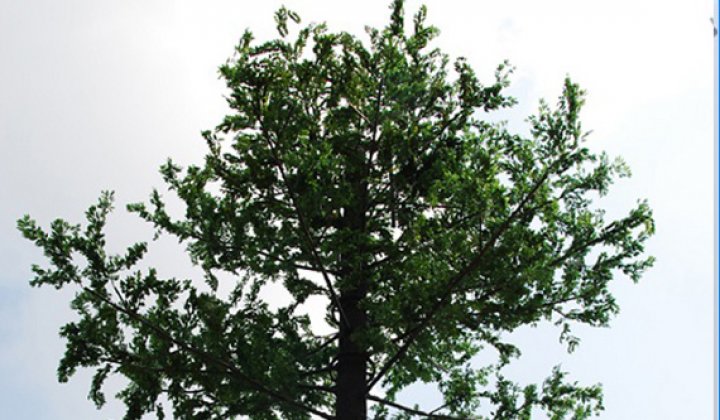

This photo refers to our MONOPINE, it is a step-tapered diameter pole with artificial branches and needles that cover the upper third portion of the pole. The Mono-Pine is to be used where there is a desire to blend the pole in with the surrounding forest and small diversity antenna mounting. It is ideal for heavy density sites where stealth is required.
TOWER DETAILS
The Mono-Pine is available in 80.1 ft., 100.1 ft. and 120.1 ft. heights. The cross section of the Mono-Pine is circular and is a maximum of 60.0” to a minimum 24.0” in diameter.
FEATURES
lStealth branches
lSmall footprint
lRRU’s installed at antennas
lLadder access
lFlush mount antennas-dual pole
COST CONSIDERATIONS
lExpensive if small dish rotations required
lBranches can be expensive
TECHNOLOGY SUPPORTED
The Mono-Pine can support HSPA & LTE- dual or quad pole antennas and must be connected through a Fiber optic connection to a network or Microwave.
REAL ESTATE
The lease area listed below is based on the minimum amount of space needed for this type of tower on an excavated area required for pad and pier foundation.
l120.1 ft. Tall 32.2 ft. x 32.2 ft.
l100.1 ft. Tall 28.5 ft. x 28.5 ft.
l80.1 ft. Tall 27.2 ft. x 27.2 ft.
Other details:
• Designed for medium to heavy loads
•Designed for primary cellular and MW backbone sites or central    communication hubs
• Lower freight cost due to freight efficiency
• Available with a large variety of accessories that can be easily mounted at any stage
• Enables easy reinforcement of legs at the site
• Modular design to fit a specific site design and enable last-minute modifications

Accessories:
• Horizontal cable gantries
• Antenna mounts
• Anti-climb guard & other
safety devices
• Paint kit (ICAO standards)
• Obstruction lighting system
(ICAO standards)
• Lightning protection kit

Design Standards:
TIA/EIA 222-G, or BS8100, EUROCODE 3 PART 3-1

Materials:
• Legs and foundation plate: Q345B, or ASTM A572 GR50, or ST 52-3, or S355JR
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394

Fabrication
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard

Connections:
Bolts (ISO 8.8, SAE Grade 5, or ASTM
A-325) + flat washers, nuts and spring
washers (5% hardware overage)
Anti-Corrosion Treatment:
All steel elements are hot-dip galvanized (ASTM A123) and covered by camouflage bark and leaves
Paint kit (white/orange)
Anchoring:
Anchor rods (ASTM F1554) used with
leveling nuts and a positioning template

Ladder:
• step bolt to any tower face
• Vertical cable hangers
Shipment:
Standard 20' to 40' ISO container
Documentation:
• Detailed packing list
• Installation & maintenance
manual
• Foundation design

For this monopine, Our MEGATRO performs in-house design activities by PLS software or other software. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.

After fabrication all towers are delivered to the galvanizing facility to be Hot Dip Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.

Moreover, we offer cost effective range of development and installation service regarding as an additional installation service. These are further, designed for both government and civil communications and suitable for both far-off and short distance communications. For additional protection, we cover these with protective shield to prevent the radioactive fallouts.

Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 set
Fabrication standard: Chinese Standard or other standard which client accepted

APPLICABLE STANDARD AND CODES
All towers manufactured and design shall be generally in accordance with latest revision of the following standards except where specifically directed otherwise.
General
IEC 60050 (151)              International Electro-technical Vocabulary
                                       Part 51 Electrical and Magnetic Devices
IEC 60050 (601)              Chapter 601: Generation, transmission and distribution of electricity-General
IEC 60050 (601)              Chapter 601: Generation, transmission and distribution of electricity-Operation
IEC 60059                        IEC standard current ratings

Chinese Standard

American Standards:

DIN VDE 0101                       -  Isokeraunic Level
VDE 0201                              - Climatic and environmental   conditions
CVDE 0210                           -  Minimum safety factors under    simultaneous working loads
ISO R898 Mechanical Properties of Fasteners
BS EN ISO 1461:1991 - High dip galvanized coatings on fabricated iron and steel articles. Specifications and standards
A) BS 5950: Welding Terms And Symbols
B) BS 729: Hot - Dip Galvanised Coating On Iron And Steel Articles
C) BS 2901: Filler Rods And Wires For Gas Shielded Arc Welding: Part 1 Ferritic Steels
D) BS 3692: ISO Metric Precision Hexagon Bolts, Screws And Nuts
E) BS 4360: Weldable Structural Steel
F ) BS 5135: Metal - Arc Welding Of Carbon And Carbon Manganese Steel
G) BS 5950: Part 1: Code Of Practice For Loading Latticed Tower & Masts
Part 2: Guide To The Background And Use Of Part 1"Code OF Practice For Loading"
Part 3: Strength Assessment of Members
H) DD 133 (1986): Code Of Practice For Loading Latticed Tower & Masts
I) BS 4592 (1987): Part 2: Specification For Expanded Metal Grating Panels
J) BS 4592 (1977): Code Of Practice For Protective Coating Of Iron And Steel Structure Against Corrosion
K) BS 4190: Bracing & Flanged Bolts
L) BS 4190: Rolled Steel sections, Flats & Plates

If any special requirement, we can design and discuss with client.
