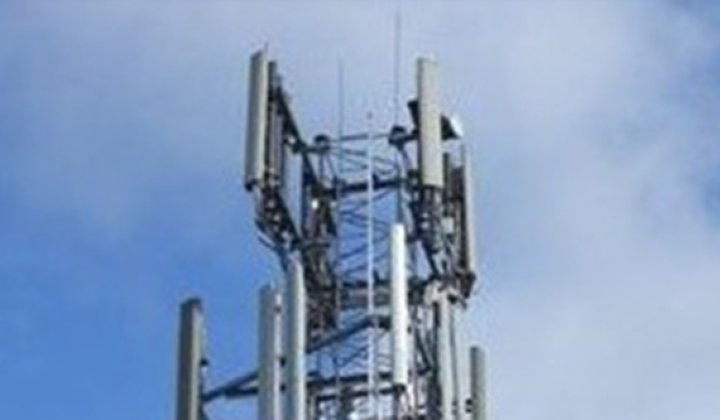

Mobile tower communication antenna
MEGATRO Mobile tower communication antennas are, typically, tall structures designed to support telecom accessories with antennas for telecommunications and broadcasting, including television.
Over three decades of industry experience in this domain enables MEGATRO to successfully undertake designing, fabrication, galvanizing and erection work of MOBILE TOWERS COMMUNICATION ANTENNA.

Our attractive and multi-functional Mobile tower communication antennas are facing immense demand from every corner of globe for their technical, scientific and compact design specifications. These are developed, designed and installed with the assistance of our experienced, qualified and expert engineers and technocrats. We offer cost effective range of development and installation service regarding as an additional installation service. These are further, designed for both government and civil communications and suitable for both far-off and short/long distance communications.

These Mobile tower communication antennas are fabricated by us keeping into consideration clients' specifications pertaining to size, weight, heights & orientation of antenna, wind velocity of location etc. Prior to installation, we also implement site survey and soil investigation. Further, we also pay attention towards the timely execution of our turnkey projects.

After fabrication all Mobile tower communication antennas are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.

MEGATRO Mobile tower communication antennas can accommodate a variety of step bolts and other accessories and mounts.  MEGATRO provide Mobile tower communication antennas design with below requirements

Design Requirements and Basic of Design
MEGATRO TOWERS will guarantee the overall safety of the tower. MEGATRO TOWERS will submit design calculation report for member design of tower and overall structural stability of the structure, which is signed by a charted structural Engineer.
MEGATRO will supply the skeleton to scale, showing the assembly of the structures, the antenna mounting levels, other detail drawings etc.
The calculation method to be adopted for tower design will be decided by MEGATRO TOWERS with the consent of the client.
All materials will comply with Chinese standard (hereinafter called GB), British Standard (hereinafter called BS), Japanese Industrial Standard (hereinafter called JIS) or equivalent standards. The permissible stress of the materials will comply with BS, standard by Architectural Institute of Japan (hereinafter call AIJ) or equivalent. The standards adopted for all materials will be stated separately.

General Design Criteria
Mast will be designed based on GB, BS 8100, TIA/EIA-222-G-2006, IS 802 & IS875 or equivalent international standards.
The wind loading on the tower and antennas mounted on it will withstand a ground level wind velocity of 140 Km/h and survival speed of 180 Km/h including with height in accordance with latest BSI CP3: Chapter V: Part 2: British Standard (BS)
Antenna that will be considered when it calculates wind areas will be Six GSM antennas, Two each 600 mm diameter microwave dishes & one 1.2m Ø Microwave plus all the feeders for GSM and MW antennas.
Allowance will be given to the effective windage area of the following:
Feeder runway
Feeders
Platforms and guard rails
Ladder and ladder guards
MEGATRO submit the complete data showing the drag factor from various angles of wind on the antenna offered.

Other Information
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 3 tons
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the Chinese Standard or other standard which clients can accept.
