MEGATRO GSM Monopole

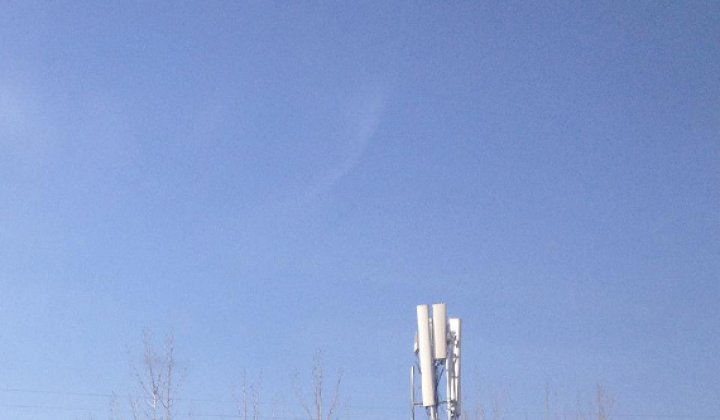

This photo refer to our GSM monopole tower, it is a mobile network system distributed over land areas called cells, each served by at least one fixed-location transceiver, known as a GSM monopole. Because it equipped by GSM or Panel antenna.

MEGATRO GSM Communication Tower  also fabricated by solid steel pipe, which provides great strength, low weight and wind resistance, and economy in the use of materials. This monopole connected by slip joint, or flange or step or swagger type based on client requirements. After fabrication all monopoles are delivered to the galvanizing facility to be Hot Dip Galvanized.  Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing.  These strict procedures insure years of maintenance free towers.

This GSM monopole also other network parts. If client need, we often provide cable tray, aviation light, lightning rod, tower earth kits such as earthing rod, bare copper and connection equipments.  MEGATRO will guarantee the overall safety of the monopole. MEGATRO will submit design calculation report for member design of tower and overall structural stability of the structure, which is signed by a charted structural Engineer.

All materials will comply with GB, BS, JIS, ASTM, EN, DIN or equivalent standards. The standards adopted for all materials will be stated separately.

General Design Criteria:
Mast will be designed based on GB, BS 8100, TIA/EIA-222-G-2006, IS 802 & IS875 or equivalent international standards.
The wind loading on the tower and antennas mounted on it will withstand a ground level wind velocity of 140 Km/h and survival speed of 180 Km/h including with height in accordance with latest BSI CP3: Chapter V: Part 2: British Standard (BS)
Antenna that will be considered when it calculates wind areas will be Six GSM antennas, Two each 600 mm diameter microwave dishes & one 1.2m Ø Microwave plus all the feeders for GSM and MW antennas, or even we modify them as per client requirements.

MEGATRO submit the complete data showing the drag factor from various angles of wind on the antenna offered or deflection of monopole.

Availability size: Based on the customer’s requirements.
Material: Chinese material or as per clients requirement
Package: both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 1 set
Port of Loading: Qingdao Port
Lead Time: one month or based on the customer’s needs

Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to Chinese Standard or foreign standard.
