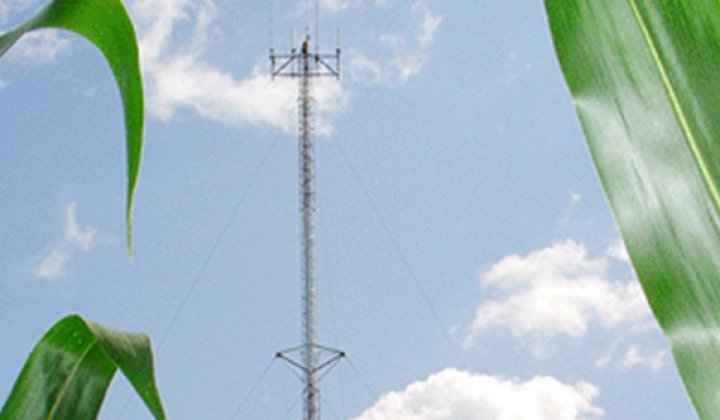

GUYED MASTS
Guyed masts are utilized to achieve the maximum in elevation and loading at an economical cost. The addition of heavier braced sections and torque arm guy points allow a tower to be engineered custom to its loading specifications.
The face width is the measurement of each side of the triangular structure that sits upon a tapered bottom section that is anchored to the foundation base by a pivot pin. The tower and mast is supported by galvanized steel guy cables of varying sizes.
Many tower and mast models end in two numbers that indicate the face width size in inches. However, the same model has various loading capabilities based upon the thickness and size of steel pipe or angle members used for vertical support and horizontal and diagonal bracing.
MEGATRO's guyed masts are secured with a pivot base and can reach heights up to 1,100 feet.  MEGATRO's all welded design provides maximum tower stiffness, minimum twist/sway and bending.  Masts come with integral wave guide clips and climbing ladder and come with heavy duty guy cable and hardware.
MEGATRO's guyed mast can accommodate a variety of broadcasting, cellular, and microwave antennas. Besides, MEGATRO guyed tower also used in power transmission line project.  MEGATRO also offers a wide variety of accessories and mounts.
After fabrication all guyed masts are delivered to the galvanizing facility to be Hot Dip Galvanized.  Masts are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing.  These strict procedures insure years of maintenance free towers.
Manufacturers provide multiple designs from tubular or round solid Incandescent Lighting 1 to angle iron legs; either knock down or all welded sections are fabricated.
If the tower structure's elevation is over 200 feet it will be required to have obstruction lighting. Some structures close to an airport will require lighting no matter what height the structure is.
Availability size: Based on the customer’s requirements.
Material: Chinese material or as per clients requirement
Package: both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 10tons
Port of Loading: Qingdao Port
Lead Time: one month or based on the customer’s needs

Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to Chinese Standard or other standard which client can accept.
