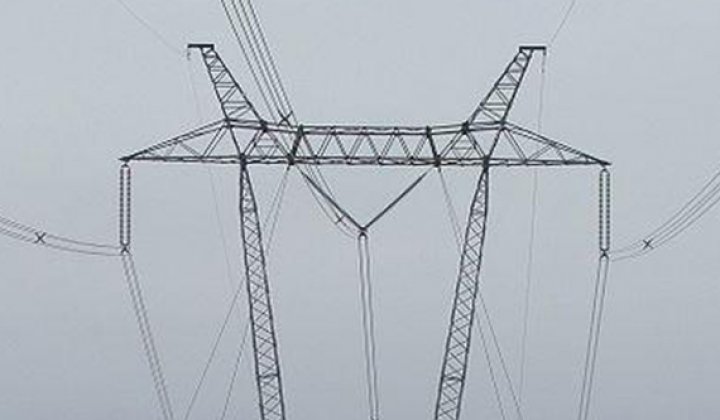

V-Guyed tower refer to lattice tower which supported and fixed by stay wire, and from one ‘V“shape. These may have, for each conductor, an insulator string hanging down from the tower, or two strings making a "V" shape. Here our MEGATRO often produce these V-type towers for our overseas clients.
MEGATRO provide high voltage power transmission guyed V type for overseas client, especially 735KV tower, we can optimized design and make tower less weight, high strength, proper span distance, good wind resistance, and economy in the use of materials. We offer comprehensive solutions to match the special requirements of each organization, aiming for absolute customer satisfaction. All our V-type suspension towers are marked by quality construction and superior strength, and are suitable for a wide range of demanding applications in power transmission infrastructure.
MEGATRO is equipped with sophisticated machinery and equipment for the manufacture of V-type suspension towers, and offers a variety of designs to meet client specific. Our 735KV V-type tower is fabricated by angle steel bar or solid steel pipe with angle or bracing members, which provides great strength, low weight and wind resistance, and economy in the use of materials. After fabrication all V-type suspension towers, are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.
Other information
Availability size: Based on the customer's requirements
Fabrication: Based on the customer's drawings and technical requirements
Port of Loading: Qingdao Port
Delivery Time: One month or based on the customer's needs
Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the Chinese Standard or other standard which clients can accept.
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the following standards (Chinese Standard or other standard):
1. GB/T2694-2003 Transmission line tower - - Technical requirements for manufacturing
2. JGJ81-2002: Technical specification for welding for steel structure of building
3. GB9787-88: Measuring and allowable tolerance for hot-rolled equal angle
4. GB709-88: Measuring and allowable tolerance for hot-rolled plate and strip
5. GB/T699-1999: Quality Carbon Structural Steel
6. GB/T1591-1994: Low alloy high strength structural Steel
7. GB700-88: Carbon Structural Steel
8. GB222-84: Method of sampling steel for determination of chemical composition and permissible variations
9. GB/T228-2002: Method for Tensile testing of metals
10 GB/T232-1999: Method for Bending test of metals
11 GB/T5117-1995: Carbon Welding Rod
12 GB/T5118-1995: Low Alloy Welding Rod
13 GB/T8220-1995: Welding wires for gas shielding arc welding of carbon and low alloy steels
14 GB/T10045-2001: Carbon steel flux cored electrodes for arc welding
15 JB/T7949-1999: Weld outer dimensions for steel construction
16 GB50205-2001: Test Standard for Acceptance of Steel Structure
17 GB/T470-1997: Zinc Ingot
18 GB3098.1-2000: Mechanical properties of fasteners-Part 1: Bolts, screws and studs
19 GB3098.2-2000: Mechanical properties of fasteners-Part2: Nuts, and thread
20 GB3098.3-2000: Mechanical properties of fasteners-Part3: Fastening screw
21 GB/T5780-2000: Helical Bolts Grade C
22 GB/T41-2000: Helical Nuts Grade C
23 GB/T90-2002: Flat Washer Grade C
24 GB/T13912-2002: Metal Coating, Technical Requirement
