MEGATRO can design and produce every type of RADAR TOWER, mainly for four-legs square towers shapes. This tower being self-supports structure and not need guyed stay. Our radar towers have some types as follow:
o Maritime Radars
o Air Traffic Control Radars
o Forest fire Monitoring
o Meteorological survey equipment
o Video & electronic surveillance equipment
o Guard tower

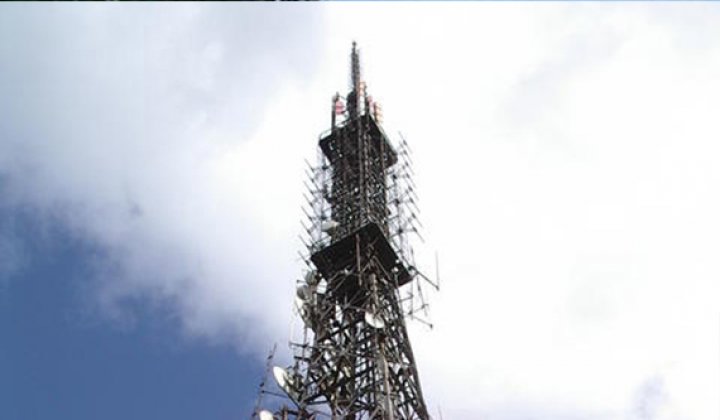

MEGATRO radar Tower is a four legged, self supporting and made of angular and tubular elements, which is designed for medium to heavy loads and easy staircase access to the antennas and equipment mounted on it and mainly suitable for RADAR sites, guard towers, forest fire control etc.
We can design tower heights up to 50m, every higher according to client requirements, and can be easily shipped in a standard 20' ISO container. Its modular design allows for last minute modification in height and loads.
Moreover, MEGATRO RADAR Tower can be supplied with a variety of accessories, such as elevator, work platforms, antenna mounts, safety devices, obstruction lights, lightning protection kit and more. All of the telecom towers accessories can be installed at any desired height and orientation according to customer requirements. If client need, we also can equipp with CCTV poles, scanners and other accessories.
Our Rader tower features:
lAvailable in height of 20 to 50M, even higher
lDesigned for medium to heavy loads
lDesigned for easy access (mainly for Rader installation)
lSafe and convenient stair case with working platform at any desired height
lEasy installation of equipment shelter ay any height
lModular design enables quick modifications to any site conditions
Technical details
Accessories
lwalkways to any points of the tower
lRadome base mount
lAntenna Mounts
lLockable staircase door
lPaint kit (ICAO color or other)
lObstruction lighting system (ICAO/FAA standards)
lLightning protection kit
lVertical cable ladder
Design standards: TIA 222-G, Or BS8100, EURO Code 3 Part 3-1
Material: S235JR, S355JR, Q235B. Q345B, ASTM A36, ASTM A572 GR50
Corrosion control:
lall steel elements are hot-dipped galvanization according to ASTM A123
lBolts are H.D.G according to ASTM A153
Anchoring system: anchor rods ASTM F1554 with leveling nuts and positioning template
Obstruction Marking:
*paint kit （white /orange）
Light system : 220VAC or 24/48VDC,
LED according to ICAO/FAA requirements
Shipment: standard 20’ or 40’ containers
Documentation:
ldetailed packing list
linstallation & maintenance manual
lfoundation design
