Welcom to QINGDAO MEGATRO HOLDING CO.,LIMITED

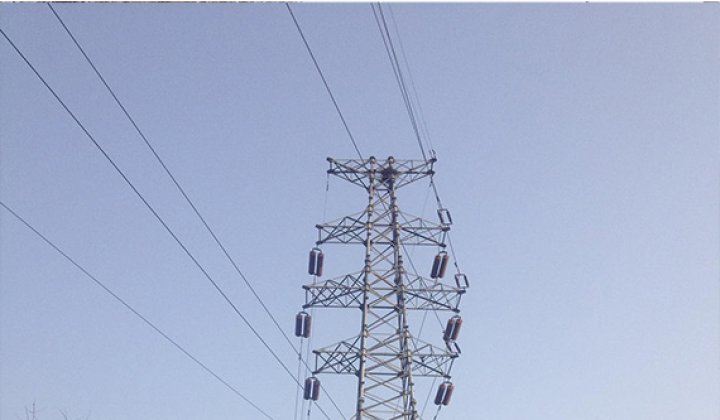

MEGATRO fabricates every type of tubular lattice steel tower for power transmission line project. Our power transmission line tubular lattice steel towers are constructed of solid steel pipe, with legs and angle iron cross members & pipes. Tubular lattice tower can reach heights up to 200 meter. MEGATRO is one of the few manufactures who assemble a face of every tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. Our tubular lattice steel tower for power transmission power has three types, one is four-leg tower, one is three-leg tower, and another is monopole tower.
After fabrication all tubular lattice steel tower are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.
MEGATRO's tubular lattice steel tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 50 tons
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Performance Standard
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the following standards (Chinese Standard or other standard):
1. GB/T2694-2003 Transmission line tower - - Technical requirements for manufacturing
2. JGJ81-2002 Technical specification for welding for steel structure of building
3. GB9787-88 Measuring and allowable tolerance for hot-rolled equal angle
4. GB709-88 Measuring and allowable tolerance for hot-rolled plate and strip
5. GB/T699-1999 Quality Carbon Structural Steel
6. GB/T1591-1994 Low alloy high strength structural Steel
7. GB700-88 Carbon Structural Steel
8. GB222-84 Method of sampling steel for determination of chemical composition and permissible variations
9. GB/T228-2002 Method for Tensile testing of metals
10 GB/T232-1999 Method for Bending test of metals
11 GB/T5117-1995 Carbon Welding Rod
12 GB/T5118-1995 Low Alloy Welding Rod
13 GB/T8110-1995 Welding wires for gas shielding arc welding of carbon and low alloy steels
14 GB/T10045-2001 Carbon steel flux cored electrodes for arc welding
15 JB/T7949-1999 Weld outer dimensions for steel construction
16 GB50205-2001 Test Standard for Acceptance of Steel Structure
17 GB/T470-1997 Zinc Ingot
18 GB3098.1-2000 Mechanical properties of fasteners-Part 1: Bolts, screws and studs
19 GB3098.2-2000 Mechanical properties of fasteners-Part2: Nuts, and thread
20 GB3098.3-2000 Mechanical properties of fasteners-Part3: Fastening screw
21 GB/T5780-2000 Helical Bolts Grade C
22 GB/T41-2000 Helical Nuts Grade C
23 GB/T90-2002 Flat Washer Grade C
24 GB/T13912-2002 Metal Coating, Technical Requirement
We also adopt British, American and other international standard
