DOUBLE CIRCUIT Catenary pole STRUCTURE

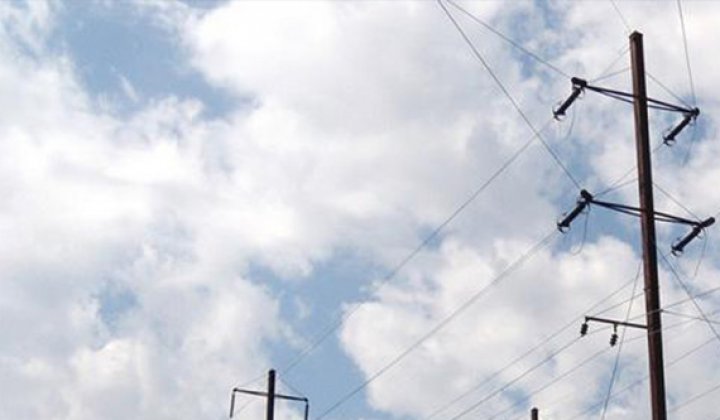

Double circuit catenary pole structure refers to one single pole to carry double circuit transmission line, which has two circuits. Usually both circuits operate at the same voltage. This type poles are mainly used in city grid project, and widely used in oversea regions. MEGATRO offers catenary poles in a range of lengths and sizes. This type pole is engineered with an extremely high strength-to-weight ratio. The poles can be quickly deployed with minimal hardware and labor, factory drilled to customer specifications or modified in the field, if required, using a carbide-tip bit. In general, this type of pole fabricated with mild steel or high strength steel, such as ASTM A36, ASTM A572 GR50, GR65, Q235B, Q345B, S355JO, S355JR, ST37, ST52, BS 50B or other.
This type of pole often used in city power transmission grid, with little space, economic and lower cost. Now MEGATRO can produce distribution pole with some type as follow:
(1) Flange connection
(2) Slip joint
(2) Step type
(3) Stagger type
(4) Others
Pole foundation types have:
(1)Direct embedment
(2)Anchor bolt
(3)Based plate
(4)Vibratory steel caisson
MEGATRO is one of the few manufactures who assemble a face of double circuit catenary poles. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. MEGATRO double circuit catenary poles systems can accommodate a variety of cross-arm and other accessories. After fabrication double circuit catenary poles are delivered to the galvanizing facility to be Hot DIP Galvanized. Catenary poles are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free H-frame structure.
MEGATRO can optimize design, to set a compact, narrow base, the pole design not only advanced but practical, with an emphasis on economic rationality to ensure safe and reliable operation. Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. To meet the expectation, we produce shop drawings, components list and full production documentation, and even complete 3D models that facilitate the elimination of all design and drawings errors generated on the drawings. Another advantage is our 3D design and loading & design report, and can optimized the design and save cost for our clients.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 set
Fabrication standard: Chinese Standard or other standard which client accepted
Steel grades
POLE SHAFT: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot DIP galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard
If any special requirement, we can design and discuss with client.
